PURECUBE NI-NTA AGAROSE NI-NTA
首页 代理品牌 Cube Biotech HIS NI-NTA

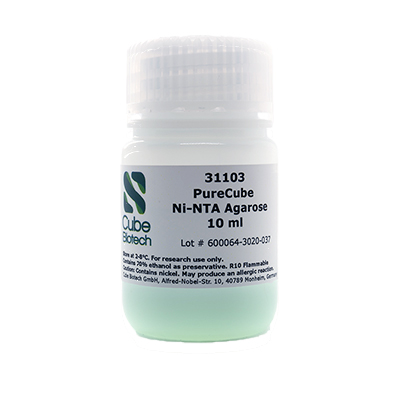

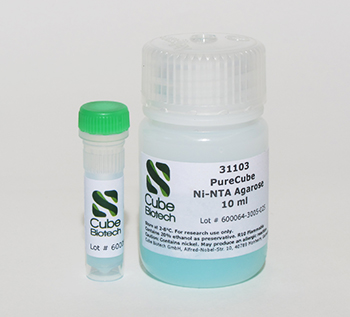

PureCube Ni-NTA Agarose
产品简介
产品优势
产品详情
产品参数
相关参数
应用领域
产品简介
PureCube Ni-NTA Agarose

PureCube His Affinity Agarose (NTA)是针对组氨酸标签的亲和层析产品,组氨酸标签是应用广泛的亲和层析标签,这种标签具有小尺寸、低免疫原性的特点和在多种天然或变性条件下的广泛适用性,NTA相对于IDA具有更高的洗脱液纯度。

产品优势

(1)、德国制造,品质与信誉的坚实保障;

(2)、结合载量可高达80mg/mL,目前市面上非常高的结合能力;
(3)、更优越的DTT和EDTA稳定性和耐受性;
(4)、凝胶的多孔性和均匀粒径,使蛋白与凝胶之间有很好地相互作用;
(5)、适合低压环境下的纯化过程(大规模纯化制备或预装柱均可使用);
(6)、为研发、生产降低成本;
(7)、适用于大肠杆菌和真核细胞的裂解液和上清液;
(8)、同时可装载Co, Cu, Zn和其它金属离子。
产品详情

1. 收率高,纯度高


Fig. 1: Over 20% more yield obtained with PureCube Ni-NTA Agarose. SDS-PAGE of GFP expressed in E. coli and purified in gravity columns with PureCube Ni-NTA Agarose and Ni-NTA resin from Competitor Q. 80 mg/mL protein yield was obtained with PureCube Ni-NTA Agarose (E1–E4, Cube) compared to 65 and 48 mg/mL, respectively, with the widely used alternative resins G and Q (E1–E4, Competitor G / Competitor Q).




Cube Biotech

蛋白结合能力

≤80mg/mL



2. 优越的DTT和EDTA稳定性


Fig. 2: NTA is robust in the presence of reducing and chelating agents. GFP-His was purified on gravity columns containing PureCube Ni-NTA Agarose after exposing the resin for 1 h to 3 concentrations of DTT or EDTA. NTA exhibits a shallow decay rate in binding capacity.


PureCube Ni-NTA琼脂糖在DTT和EDTA存在下非常坚实,在稳定性测试中,将PureCube Ni-NTA琼脂糖置于DTT与EDTA浓度逐渐升高的环境中处理1小时。再用处理过的凝胶在重力层析柱中纯化大肠杆菌表达的GFP-His,凝胶的蛋白结合能力因存在DTT与EDTA而下降,但是衰减率平缓,即使在1.5 mM EDTA,凝胶依然具有其结合能力的54%。




Cube Biotech

DTT稳定性

<10mM

EDTA稳定性

<1.5mM

产品参数

应用

Specific binding and purification of 6x his-tagged proteins

特异性

Affinity to His-tagged proteins

结合能力

>80 mg/mL

Bead Ligand

Ni-NTA

粒径大小

40 μm

蝥合剂稳定性

Stable in buffer containing 10 mM DTT and 1 mM EDTA

保存

Delivered as a 50 % suspension

所需试剂耗材

Lysis Buffer Wash Buffer

Elution Buffer

Ice bath

Refrigerated centrifuge for 50 mL tube (min 10,000 x g)

50 mL centrifuge tube

Micropipettor and Micropipetting tips

Disposable gravity flow columns with capped bottom outlet, 2 ml

pH meter

End-over-end shaker


SDS-PAGE buffers, reagents and equipment Optional: Western Blot reagents and equipment


相关参数

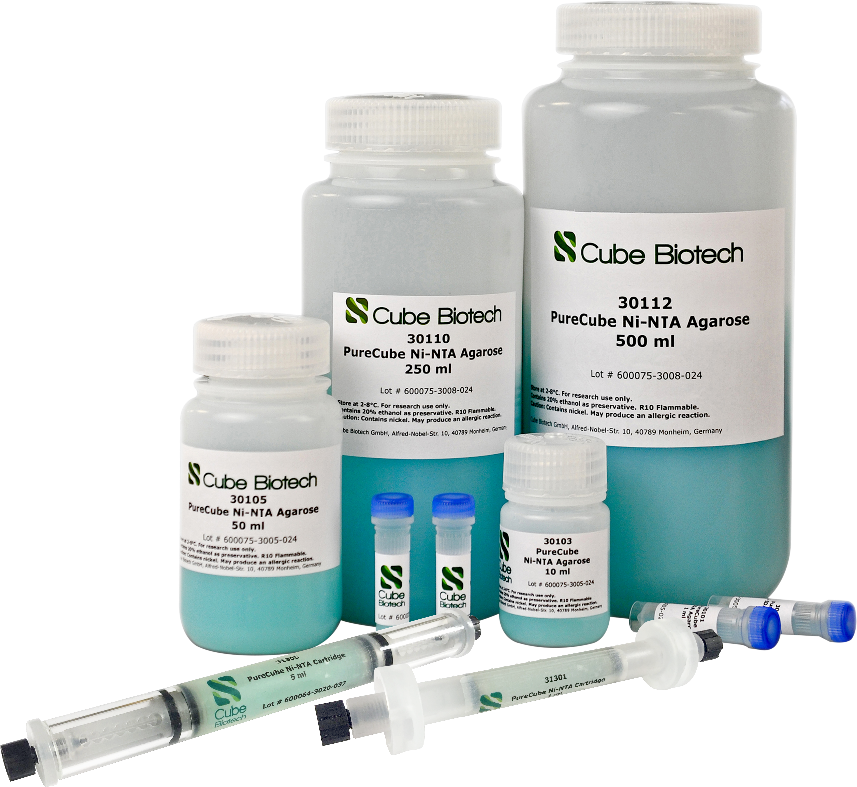

货号

产品

粒径

μm)

结合

载量

运输

温度

储存

温度

应用

31101

PureCube Ni-NTA Agarose(1ml)

40

80mg/mL

室温

4° C

适用于 His 标签重组蛋白的纯化 , 超高蛋白结合载量。pH 稳定工作范围2-14, 最大流速为6mL/min。 在10mM DTT 和1mM EDTA的环境下保持稳定



31103

PureCube Ni-NTA Agarose(10ml)

40

80mg/mL

室温

4° C

31105

PureCube Ni-NTA Agarose(50ml)

40

80mg/mL

室温

4° C

31110

PureCube Ni-NTA Agarose(250ml)

40

80mg/mL

室温

4° C

31112

PureCube Ni-NTA Agarose(500ml)

40

80mg/mL

室温

4° C

31115

PureCube Ni-NTA Agarose(1000ml)

40

80mg/mL

室温

4° C

31120

PureCube Ni-NTA Agarose(5000ml)

40

80mg/mL

室温

4° C



如需咨询或订购
请拨打 400-9910-165 / 028-85568133
或添加微信 zenmindes-sale


中国独家总代理:

成都正民德思生物科技有限公司

www.zenmindes.com


咨询
应用领域
Characterization of Plasmodium falciparum 6-phosphogluconate dehydrogenase as an antimalarial drug target

Haeussler, Kristina, et al.

Journal of molecular biology 430.21 (2018): 4049-4067

Protein–Polymer Microcapsules for PCR Technology

Wang, Xiaoliang, et al.

ChemBioChem 19.10 (2018): 1044-1048

Structural insights into ion conduction by channelrhodopsin 2

Volkov, Oleksandr, et al.

Science 358.6366 (2017): eaan8862

A New Homo-Hexamer Mn-Containing Catalase from Geobacillus sp. WCH70

Li, Hai-Chao, et al.

Catalysts 7.9 (2017): 277

Cell-free production of membrane proteins in Escherichia coli lysates for functional and structural studies

Rues, Ralf-Bernhardt, et al.

Heterologous Expression of Membrane Proteins. Humana Press, New York, NY, 2016. 1-21

A novel glutamyl (aspartyl)-specific aminopeptidase A from Lactobacillus delbrueckii with promising properties for application

Stressler, Timo, et al.

PloS one 11.3 (2016): e0152139

Molecular Characterization of Ethylene Response Sensor 1 (BoERS1) in Bambusa oldhamii

Hsieh, Yi-Lin, et al.

Plant molecular biology reporter 34.2 (2016): 387-398

A natural variant of arylsulfatase from Kluyveromyces lactis shows no formylglycine modification and has no enzyme activity

Stressler, Timo, et al.

Applied microbiology and biotechnology102.6 (2018): 2709-2721

Influence of the metal ion on the enzyme activity and kinetics of PepA from Lactobacillus delbrueckii.

Ewert, Jacob, et al.

Enzyme and microbial technology 110 (2018): 69-78

Buß, Maren et al.(2019). Specific high affinity interaction of Helicobacter pylori CagL with integrin α V β 6 promotes type IV secretion of CagA into human cells. The FEBS Journal. 10.1111/febs.14962.

Ewert, Jacob, et al.

Enzyme and microbial technology 110 (2018): 69-78

The SnRK1-eIFiso4G1 signaling relay regulates the translation of specific mRNAs in Arabidopsis under submergence

Cho, H.-Y., et al.

New Phytologist. 222. 10.1111/nph.15589

Glucose 6-phosphate dehydrogenase 6-phosphogluconolactonase: Characterization of the Plasmodium vivax enzyme and inhibitor studies. Malaria Journal

Haeussler, Kristina, et al.

Malaria Journal. 18. 10.1186/s12936-019-2651-z

Structure-based switch of regioselectivity in the flavin-dependent tryptophan 6-halogenase Thal. Journal of Biological Chemistry

Moritzer, Ann-Christin, et al.

Journal of Biological Chemistry. 294. jbc.RA118.005393. 10.1074/jbc.RA118.005393

Rapid concentration and elution of malarial antigen histidine-rich protein II using solid phase Zn(II) resin in a simple flow-through pipette tip format

Bauer, Westley S, et al.

Biomicrofluidics vol. 11,3 034115. 2 Jun. 2017, doi:10.1063/1.4984788

Expression, purification and stabilization of human serotonin transporter from E. coli

Worm D, et al.

Protein Expression and Purification Volume 164, December 2019, 105479 DOI: 10.1016/j.pep.2019.105479

Specific high affinity interaction of Helicobacter pylori CagL with integrin α V β 6 promotes type IV secretion of CagA into human cells

Buß, et al.

The FEBS Journal. 10.1111/febs.14962

Arabidopsis immunity regulator EDS1 in a PAD4/SAG101-unbound form is a monomer with an inherently inactive conformation

Voß M, et al.

Journal of Structural Biology. 10.1016/j.jsb.2019.09.007

Characterization of specifically metal-binding phage clones for selective recovery of cobalt and nickel

Matys, S et al.

Journal of Environmental Chemical Engineering. 103606. 10.1016/j.jece.2019.103606

Controlled manipulation of enzyme specificity through immobilization-induced flexibility constraints

Coscolín, Cristina et al.

Applied Catalysis A: General. 565. 10.1016/j.apcata.2018.08.003

Magnetically-enabled biomarker extraction and delivery system: towards integrated ASSURED diagnostic tools

Bauer, Westley S et al.

The Analyst vol. 142,9 (2017): 1569-1580. doi:10.1039/c7an00278e

A handheld orbital mixer for processing viscous samples in low resource settings

Scherr, Thomas et al.

Anal. Methods. 8. 10.1039/C6AY01636G

A Novel Glutamyl (Aspartyl)-Specific Aminopeptidase A from Lactobacillus delbrueckii with Promising Properties for Application

Stressler, T. et al.

PLOS ONE. 11. e0152139. 10.1371/journal.pone.0152139

Rational Design of Alginate Lyase from Microbulbifer sp. Q7 to Improve Thermal Stability

Yang, M. et al.

Marine Drugs. 17. 378. 10.3390/md17060378

Influence of the metal ion on the enzyme activity and kinetics of PepA from Lactobacillus delbrueckii

Ewert, J. et al.

Enzyme and Microbial Technology. 110. 10.1016/j.enzmictec.2017.10.002

A natural variant of arylsulfatase from Kluyveromyces lactis shows no formylglycine modification and has no enzyme activity

Stressler, T. et al

Applied Microbiology and Biotechnology. 102. 10.1007/s00253-018-8828-5

Study on expression and action mode of recombinant alginate lyases based on conserved domains reconstruction

Yang, M. et al.

Applied Microbiology and Biotechnology. 103. 10.1007/s00253-018-9502-7

A near-infrared fluorescent probe quinaldine red lights up the β-sheet structure of amyloid proteins in mouse brain

Wag et al.

Biosensors and Bioelectronics. 153. doi.org/10.1016/j.bios.2020.112048

Heterologous expression and molecular binding properties of AofleA, a fucose-specific lectin from nematophagous fungus Arthrobotrys oligospora

Tian, Dongrui, et al.

International Journal of Biological Macromolecules (2020)

Mouse Ifit1b is a cap1-RNA binding protein which inhibits mouse coronavirus translation and is regulated by complexing with Ifit1c

Mears, H.V., & Sweeney T.R.

Journal of Biological Chemistry

Decoupling Protein Production from Cell Growth Enhances the Site-Specific Incorporation of Noncanonical Amino Acids inE. coli

Casas et al.

ACS Publications

High-resolution structural insights into the heliorhodopsin family

Kovalev, K. et al.

Proceedings of the National Academy of Sciences. 117. 201915888. 10.1073/pnas.1915888117

A new MMP-mediated prodomain cleavage mechanism to activate bone morphogenetic proteins from the extracellular matrix

Furlan A.G. et al.

The FASEB Journal. 35:e21353 doi.org/10.1096/fj.202001264R

Intermediary conformations linked to the directionality of the aminoacylation pathway of nonribosomal peptide synthetases

Mayerthaler F. et al.

RSC Chem. Biol., 2021, Advance Article doi.org/10.1039/D0CB00220H

Rekombinante Formen sekretorischer Proteine der Speicheldrüsen des medizinischen Blutegels und deren funktionelle Testung

Lukas P.

PHD Thesis, University of Greifswald

Overexpression and isolation of the intermediate state of serotonin transporter from Echinococcus multilocularis –‒ the ER localized HSP complexes of the folding trajectory

Weihou Guo

PhD, University of Hamburg

Structure-based insights into evolution of rhodopsins

Zabelskii, D. et al.

Commun Biol 4, 821 (2021). https://doi.org/10.1038/s42003-021-02326-4

Measurement of Low Concentration of Micro-Plastics by Detection of Bioaffinity-Induced Particle Retention Using Surface Plasmon Resonance Biosensors

Huang, C.-J.; Narasimha, G.V.; Chen, Y.-C.; Chen, J.-K.; Dong, G.-C

Biosensors 2021, 11, 219. https://doi.org/10.3390/bios11070219

Assessment of the Contribution of a Thermodynamic and Mechanical Destabilization of Myosin–Binding Protein C Domain C2 to the Pathomechanism of Hypertrophic Cardiomyopathy

Schwäbe et al.

causing Double Mutation MYBPC3Δ25bp/D389V 2021 doi: 10.20944/preprints202110.0178.v1

Sphingosine-1-phosphate, a novel TREM2 ligand

Xue et al.

promotes microglial phagocytosis to protect against ischemic brain injury 2021 https://doi.org/10.1016/j.apsb.2021.10.012

De novo developed protein binders mimicking Interferon lambda signaling

Kolářová, L., et al.

The FEBS Journal. Accepted Author Manuscript. https://doi.org/10.1111/febs.16300

Structure of CRL2Lrr1, the E3 ubiquitin ligase that promotes DNA replication termination in vertebrates

Haixia Zhou, et al

Nucleic Acids Research, 2021;, gkab1174, https://doi.org/10.1093/nar/gkab1174

Dissecting the interactions of PINK1 with the TOM complex in depolarized mitochondria

Maruszczak et al.

42.BioRxiV pre-print Server https://doi.org/10.1101/2022.01.13.476189

A network of cytosolic (co)chaperones promotes the biogenesis of mitochondrial signal-anchored outer membrane proteins

Drwesh L. et al.

BioRxiV pre-print Server https://www.biorxiv.org/content/10.1101/2022.02.15.480587v1

Frameshift mutation S368fs in the gene encoding cytoskeletal β-actin leads to ACTB-associated syndromic thrombocytopenia by impairing actin dynamics

Greve J.N. et al.

European Journal of Cell Biology 101 https://doi.org/10.1016/j.ejcb.2022.151216

Evolution of ligand specificity of protein kinase A isoforms in the phylum Euglenozoa

Greve Veronica Teresa Ober et al.

PhD Thesis, University of Munich

ystemic immune response to vimentin and granuloma formation in a model of pulmonary sarcoidosis

Bagavant H. et al.

Journal of Translational Autoimmunity

The role of the individual TOM subunits in the association of PINK1 with depolarized mitochondria

Maruszczak K. K. et al.

Journal of Molecular Medicine

Serological Assays for Alveolar and Cystic Echinococcosis—A Comparative Multi-Test Study in Switzerland and Kyrgyzstan

Kronenberg et al.

Pathogens

The interplay of lipids and respiratory enzymes in synthetic ATP producing systems

Deutschmann

PhD Thesis, University of Bern

Rekombináns fehérje szubsztrátok alkalmazása HIV-1 és SARS-CoV-2 proteázok vizsgálatára és egy bioréteg interferometria-alapú mérési módszer kidolgozására

Márió M

PhD Thesis, DEBRECENI EGYETEM MOLEKULÁRIS SEJT- ÉS IMMUNBIOLÓGIAI DOKTORI ISKOLA

Crucial steps on the way to a comprehensive structural understanding of the plant proteins EDS1 and PAD4 and their role in innate immunity

Voß M

PhD Thesis, University of Cologne

Depletion of endogenously biotinylated carboxylases enhances the sensitivity of TurboID-mediated proximity labeling in C. elegans

Arten M. et al.

Journal of biological chemistry

Triosephosphate Isomerase and Its Product Glyceraldehyde-3- Phosphate Are Involved in the Regulatory Mechanism That Suppresses Exit from the Quiescent State in Yeast Cells

Lui G. et al.

Microbiology Spectrum

Identification of a Thyroid Hormone Binding Site in Hsp90 with Implications for Its Interaction with Thyroid Hormone Receptor Beta

Fan L. et al.

ACS Omega

Prominent role of cysteine residues C49 and C343 in regulating Plasmodium falciparum pyruvate kinase activity

Dillenberger M.

Structure Volume 30

Engineering a Conformationally Switchable Artificial Metalloprotein

Fatima S. et al.

SPre-Print
