PureCube NTA Magbeads XL
产品简介
产品详情
产品参数
相关参数
产品简介

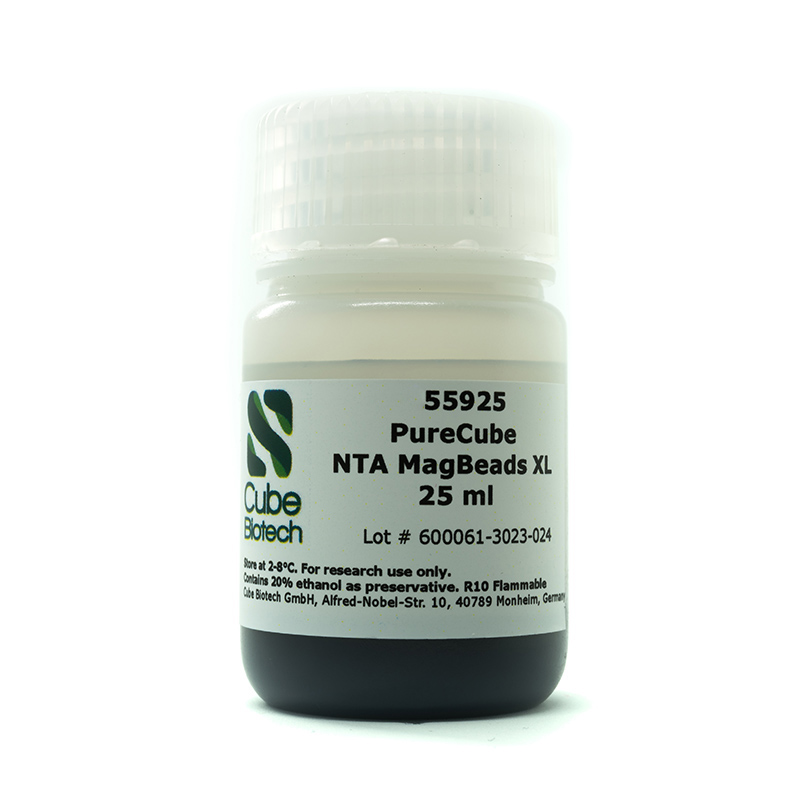

PureCube NTA Magbeads XL

PureCube NTA MagBeads / magnetic beads XL were developed for IMAC based purification and enrichment methods. Since the affinity of an NTA-metal-ion-complex depends on the loaded metal ion, we offer NTA magnetic beads uncoupled to any metal ion for the case that we do not offer your desired NTA + metal ion combination. By providing our coupling protocols, feel free to create any NTA purification resin you desire. PureCube NTA MagBeads are also available regular sized (30 µm) for higher protein purifications of more viscous cell lysates or as NTA agarose resin. Furthermore PureCube NTA agarose can also be obtained pre-filled into FPLC cartridges / columns.

产品详情

1. Protein Binding Capacity

The protein binding capacity is ~40 mg protein per mL of settled beads, as determined by purification of 6xHis-tagged GFP protein from E.coli cleared lysates, and quantified via spectrophotometry.


2. Compatibility

PureCube NTA MagBeads XL are very stable and can resist the following conditions in most situations: pH 2-4, 100% methanol, 100% ethanol, 8 M urea, 6 M guanidinium hydrochloride, 30% (v/v) acetonitrile.


3. Different metal ions confer different binding affinity and specificity

His-tag purification is based on ionic interactions of a coupled metal ion and the Poly-His-tag. Therefore other metal ions can also fullfill the function of Nickel. Figure 1 shows the most frequently used metal ions for His-tag purification. Depending on the used metal ion the balance between the specificity and the affinity of the metal ion to the His-tag shifts. Nickel is a balanced choice between both extremes. Copper has the highest affinity, but Cobalt is the choice for the most pure His-tag purifications.

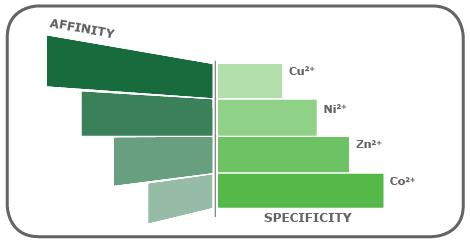

Fig. 1: Depending on which metal ion is coupled to NTA the balance between protein yield and purification specificity shifts. Nickel is a very balanced choice between the two extremes.

产品参数

Type

Magnetic Beads

Ligand

NTA

Coupled Ion

none

Usage

For coupling of metal ions for corresponding purification and / or enrichment purposes

Specifity

Varies

Binding capacity

Depends on the loaded ion

Purity

Depends on the loaded ion

Bead Ligand

NTA

Bead size

~90 μm(XL MagBeads)

Matrix

6% cross-linked agarose

Recommended FPLC flow rates

0.5-2 mL/min

Maximal FPLC flow rate

6 mL/min

pH stability

2-14
